This versatile electric range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range also features Even-Heat™ True Convection, helping you achieve flawless cooking results. The unique bow-tie design and convection fan ensure the entire oven isheated to, and stays at, the perfect temperature.
Top Features

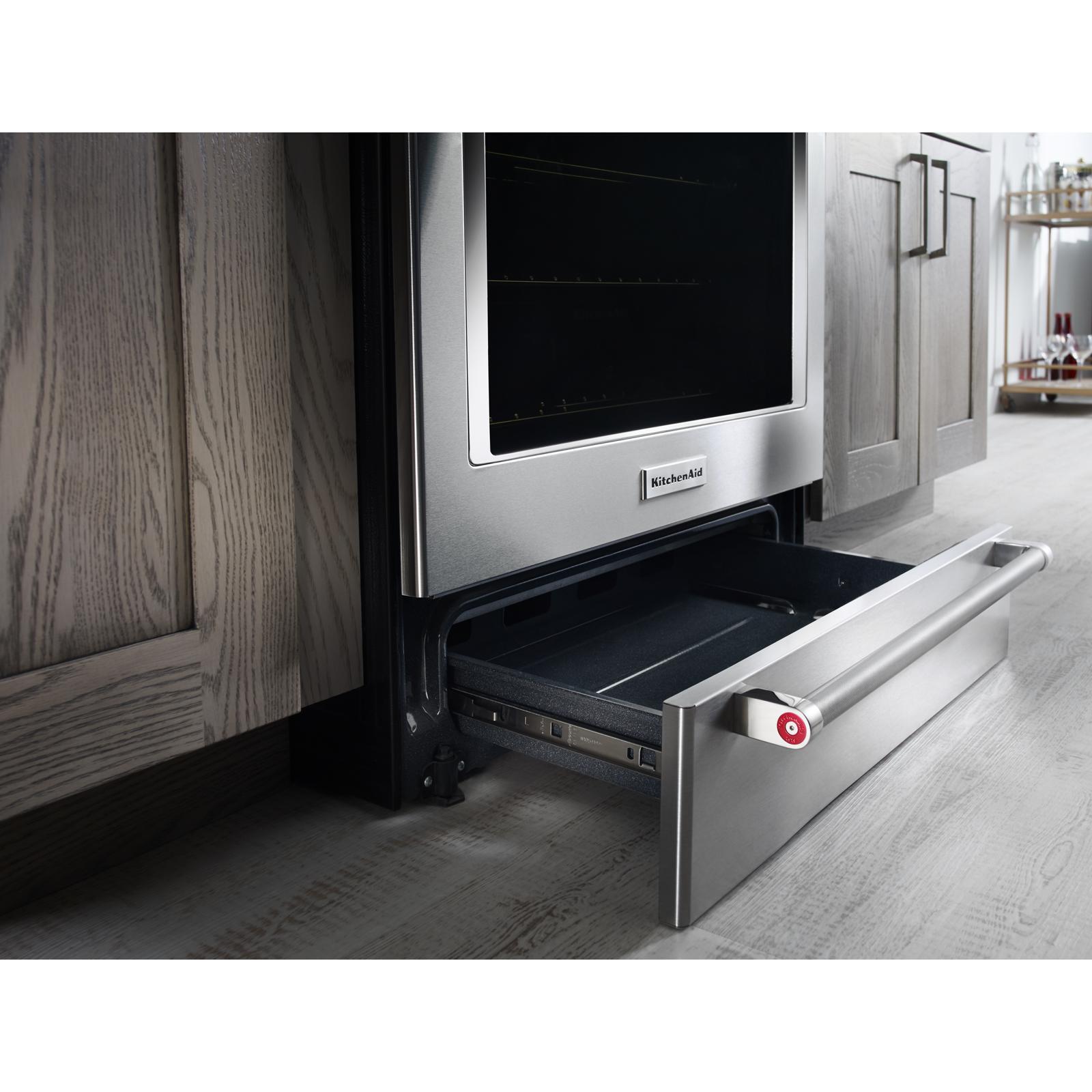

Baking drawer
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes
Even-Heat™ True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Additional Features
7.1 cu ft total capacity
This electric freestanding range provides an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.
5 cooking elements including a warm zone
Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect™ Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
FIT Guarantee
Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
Aqualift®
Cleans your oven in less than an hour without odours and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.
Side Trim Accessory Kit
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.

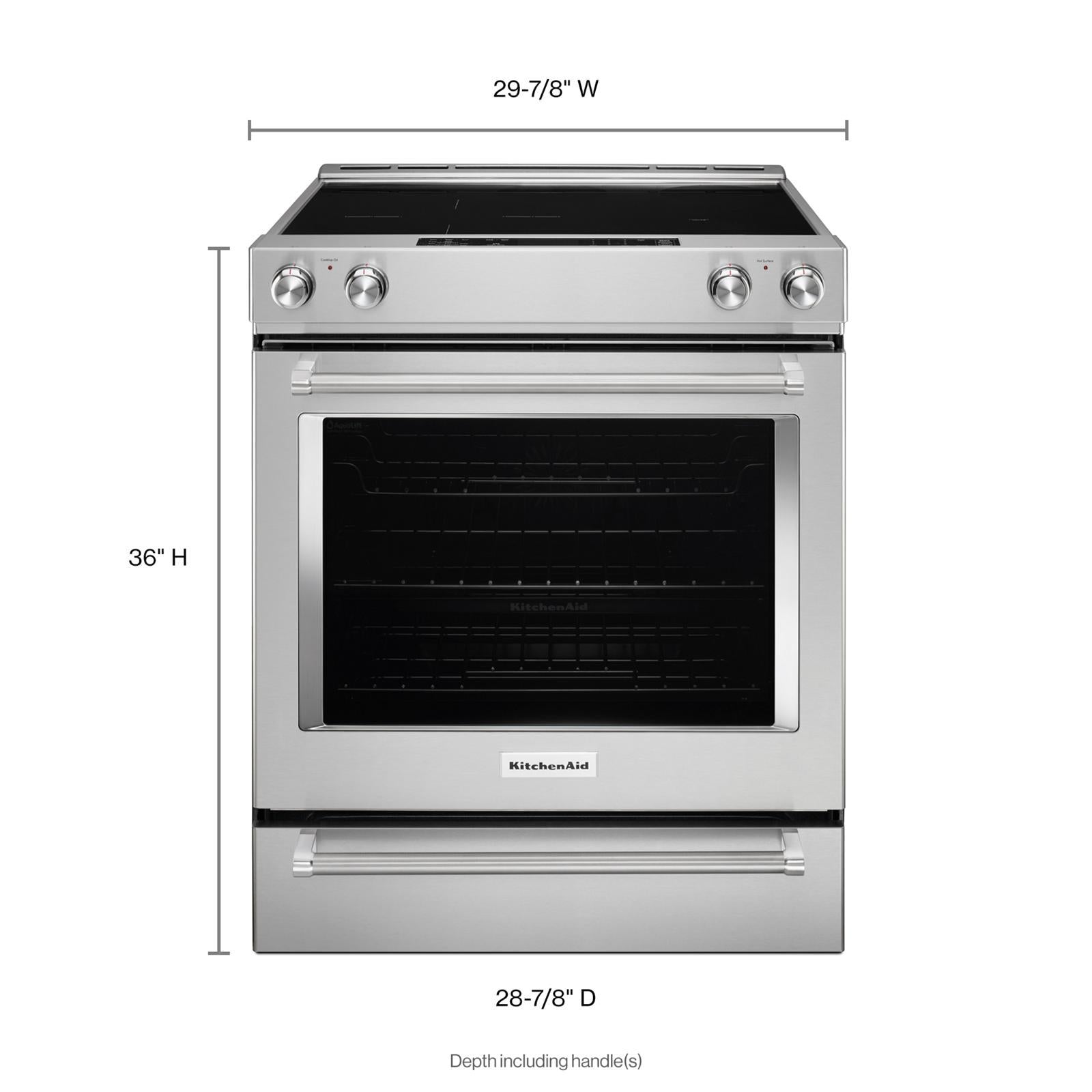

| Dimensions | |
|---|---|
| Depth | 28.88 " |
| Width | 29.88 " |
| Height | 36.0 " |
| Carton Depth | 30.51 " |
| Carton Height | 43.5 " |
| Carton Width | 31.5 " |
| Depth Closed Excluding Handles | 26.38 " |
| Depth Closed Including Handles | 28.88 " |
| Gross Weight | 200.0 lbs |
| Capacity FT3 (cubic feet) | 7.1 |
| Net Weight | 182 lbs |
| Details | |
| Number Of Oven Racks | 3 |
| Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
| Oven Light Type | Incandescent |
| Oven Cooking System | Convection |
| Oven Control Type | Electronic Touch |
| Oven Cleaning Type | AquaLift® Self-Clean |
| Number Of Rack Guides | 7 |
| Number Of Oven Lights | 2 |
| Interior Color | Grey |
| Hidden Bake Element | Yes |
| Cooktop Surface Material | Ceramic Glass |
| Convection Functions | Bake; Broil; Roast |
| Convection Element Type | Fan |
| Convection Element Power Watts | 3200 |
| Broiler Location | Top of Oven |
| Bake Element Power | 3600W |
| Broiler Element Power | 4000W |
| Electrical | |
| Power Cord Included | Yes |
| Amps | 40 |
| Volts | 240 |
| Energy | |
| Annual Energy Usage Kwh | 560 |
| Exterior | |
| Drawer Type | Baking Drawer |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Features | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| LP Convertible | No |
| Power Outage Compatible | No |
| Specifications | |
| Optional Accessories | W10115773, W10285447, W10655448, W10655449, W10655450, W10675026, W10675027, W10675028, W10731885, W10731886, W10731887 |
| Extended Service Plan Parent | EW08IW1Y, EW08IW2Y, EW08IW4Y |
| Product To Product Pairs | KVUB400GSS, KVUB600DSS, KVWB400DSS, KVWB600DSS, KVWB600HBS, UVL5430JSS |
| Dishwasher Safe | No |
| Country Of Origin | USA |
| Controls | |
| Control Type | Electronic Touch |
| Knob Color | Stainless Steel |
| Knob Type | Weighted |
| Cooktop Details | |
| Center Rear Element Burner Size | 6in. |
| Left Front Element Burner Type | Triple |
| Center Rear Element Burner Power | 100W |
| Center Rear Element Burner Type | Warming |
| Cooktop Control Location | Front |
| Cooktop Element Style | Ceran |
| Cooktop Surface Color | Black |
| Left Front Element Burner Power | 3000W/1950W/1050W |
| Left Front Element Burner Size | 12in./9in./6in. |
| Left Rear Element Burner Power | 1300W |
| Left Rear Element Burner Size | 6in. |
| Left Rear Element Burner Type | High Output |
| Number Of Cooking Element Burners | 5 |
| Right Front Element Burner Power | 3200W |
| Right Front Element Burner Size | 10in. |
| Right Front Element Burner Type | High Output |
| Right Rear Element Burner Power | 1200W |
| Right Rear Element Burner Size | 6in. |
| Right Rear Element Burner Type | Standard |
| Certifications | |
| Energy Rating Kwh Year | 560 |
| UL | Yes |
| ADA Compliant | Yes |
| Configuration and Overview | |
| Fuel Type | Electric |
| Configuration | |
| Oven Configuration | Single Oven |
| Range Configuration | Slide-In |
| Description | |
| Range Type | Slide-in |
| Size In | 30 |
