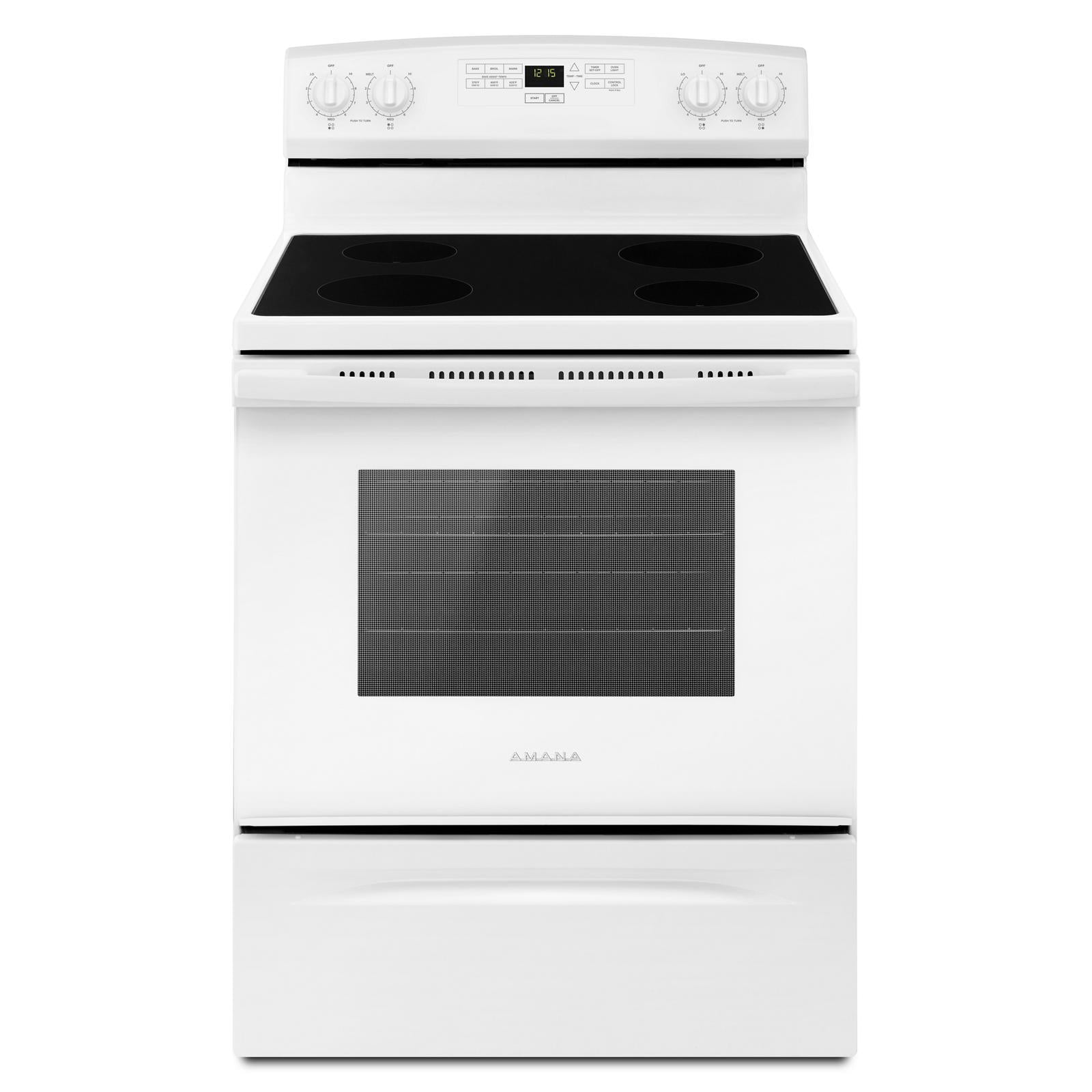

This 30-inch Amana® Electric Range comes with Bake Assist Temps to help you get dinner going. Simply choose a preset temperature setting to get started. Or, set your bake or broil temperatures with Easy Touch Electronic Controls Plus, which are extra-large and easy-to-read. And when you need to know how your dinner is doing without opening the oven door, the Extra-Large Oven Window lets you see and savor.
Top Features

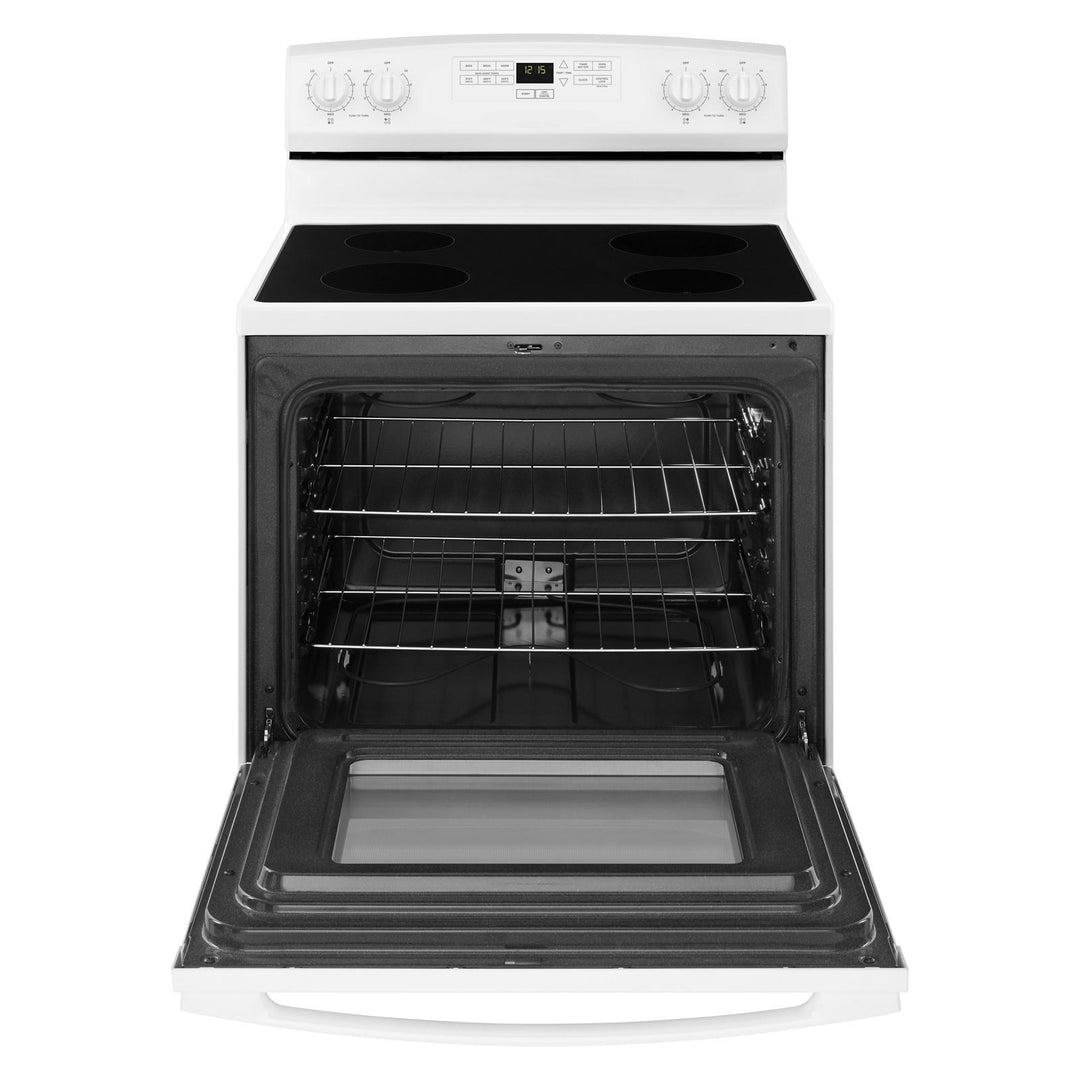

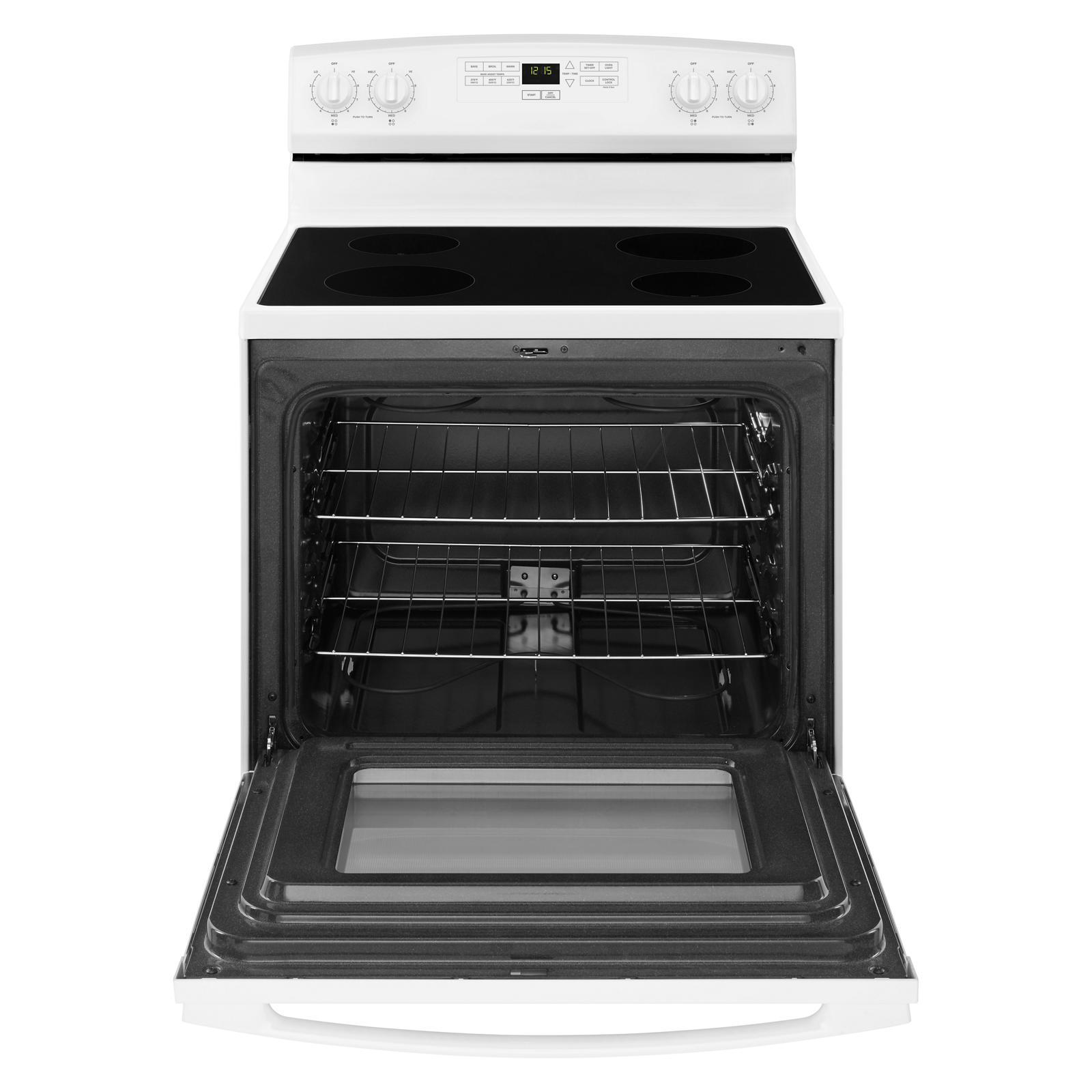

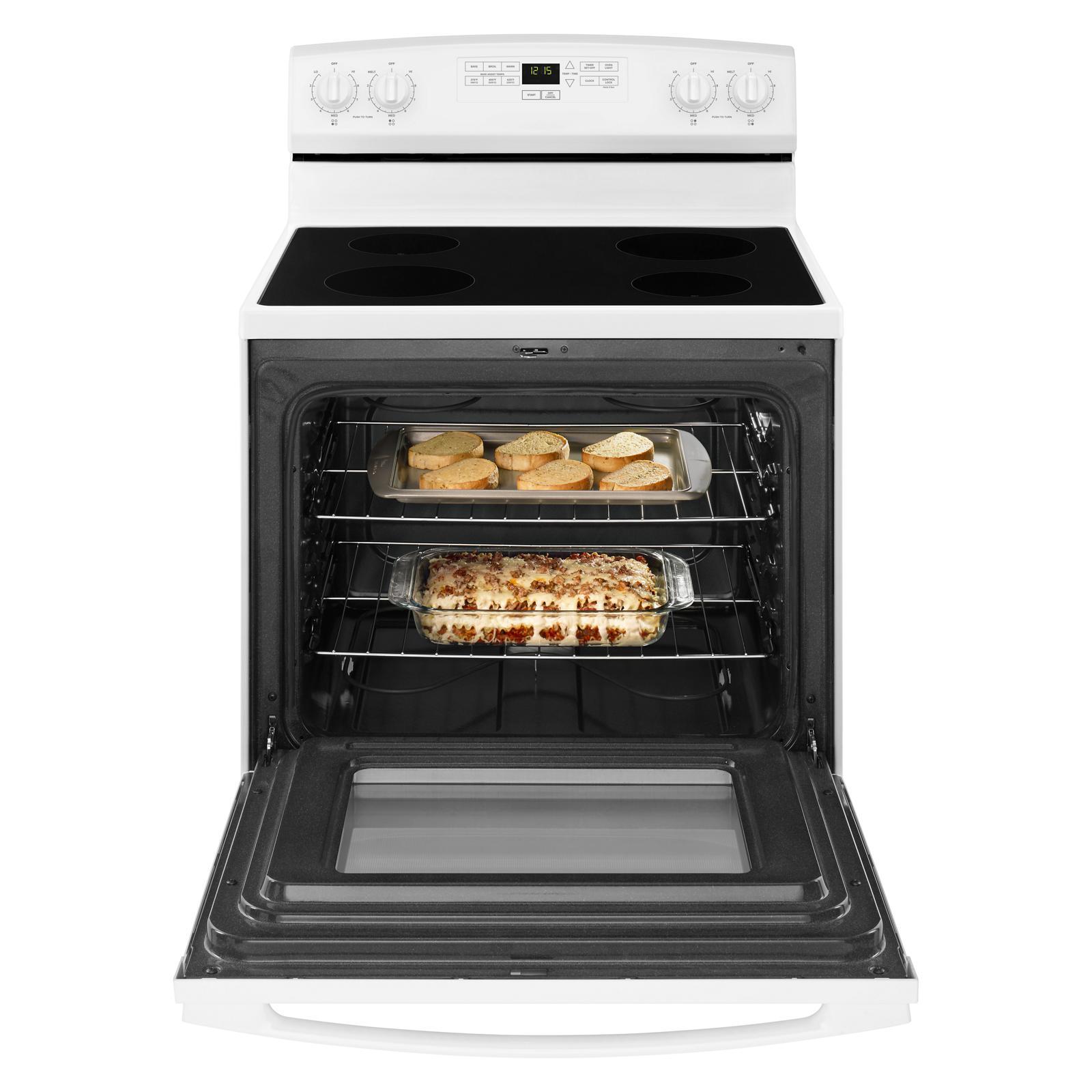

Large Oven Capacity
Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.

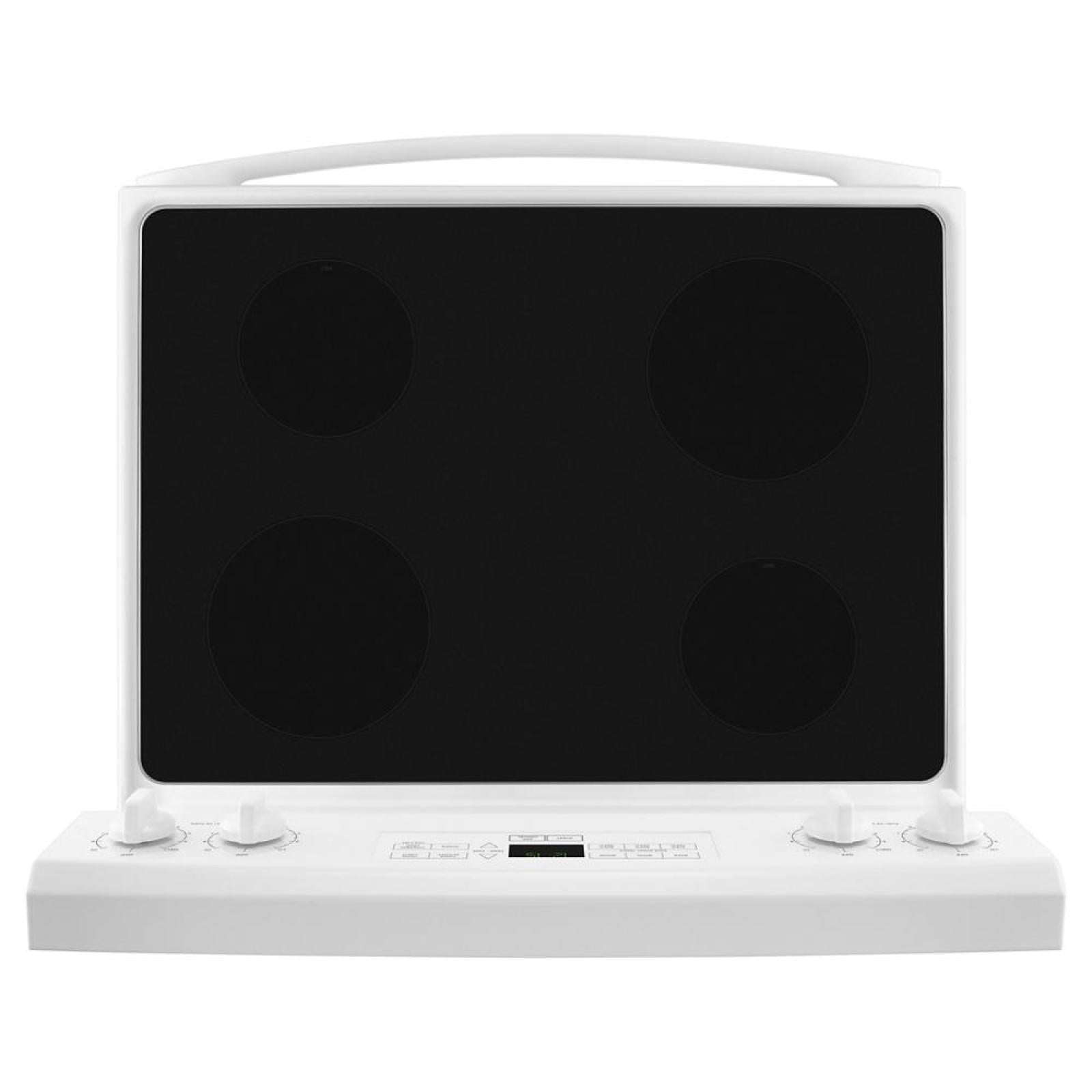

Versatile Cooktop
Our multiple element options provide up to 3,000 watts to help you cook more of your favorites at the same time.
Bake Assist Temps
These preset temperature settings make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Additional Features

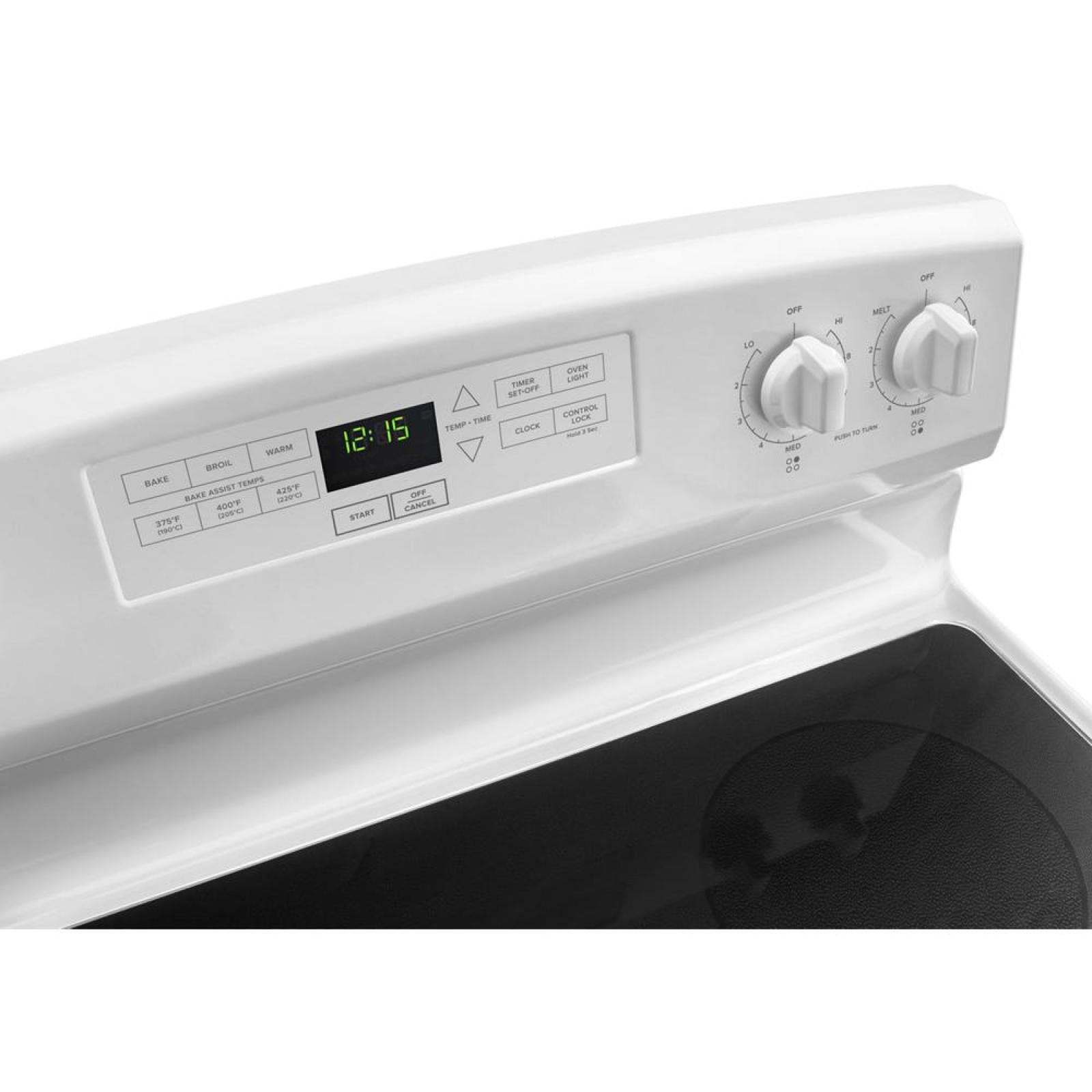

Easy Touch Electronic Controls
It's smooth sailing on casserole night when you can set bake or broil temperatures with ease.
Temp Assure™ Cooking System
Distributes heat throughout the entire oven to help comfort food favorites like chicken parmesan or mom's beef pot roast taste just how you like them.
Extra-Large Oven Window
See and savor. A bigger view lets you check on food without having to open the oven door.
Warm Hold
Can't serve dinner right away? Warm Hold keeps the oven at 145ºF to 190ºF, so dishes like your baked chicken Parmesan are still ready when you are.
Oven Lockout
This safety feature locks your oven and its controls to help protect against accidental use.
Indicator Lights
Check your oven's status and settings at a glance.
Sabbath Mode
If you keep a kosher home, this setting helps override the features of modern ovens such as automatic shutoff and electrical lights.
| Dimensions | |
|---|---|
| Depth | 27.75 " |
| Width | 29.88 " |
| Height | 46.88 " |
| Carton Depth | 29.0 " |
| Carton Height | 48.75 " |
| Carton Width | 32.0 " |
| Depth Closed Excluding Handles | 25.31 " |
| Depth With Door Open 90 Degree | 46.69 " |
| Gross Weight | 187.0 lbs |
| Maximum Height | 47.88 " |
| Minimum Height | 46.88 " |
| Cutout Depth | 24.0 " |
| Cutout Height | 36.0 " |
| Cutout Width | 30.0 " |
| Capacity FT3 (cubic feet) | 4.8 |
| Details | |
| Oven Cleaning Type | Manual Clean |
| Bake Element Power | 2400W |
| Broiler Element Power | 3400W |
| Broiler Location | Top of Oven |
| Convection Element Type | None |
| Convection Functions | No |
| Cooktop Surface Material | Porcelain Coated Steel |
| Hidden Bake Element | No |
| Interior Color | Grey |
| Number Of Oven Lights | 1 |
| Number Of Oven Racks | 2 |
| Number Of Rack Guides | 5 |
| Oven Control Location | Rear Control |
| Oven Control Type | Electronic Touch |
| Oven Cooking System | Thermal |
| Oven Interior Depth In Inches | 18.5 |
| Oven Interior Width In Inches | 24.5 |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard |
| Cooktop Details | |
| Right Rear Element Burner Power | 1800W |
| Right Rear Element Burner Size | 8in. |
| Right Rear Element Burner Type | Standard Radiant |
| Right Front Element Burner Type | Standard Radiant |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Element Style | Ceran |
| Cooktop Surface Color | Black |
| Left Front Element Burner Power | 1800W |
| Left Front Element Burner Size | 8in. |
| Left Front Element Burner Type | Standard Radiant |
| Left Rear Element Burner Power | 1200W |
| Left Rear Element Burner Size | 6in. |
| Left Rear Element Burner Type | Standard Radiant |
| Number Of Cooking Element Burners | 4 |
| Right Front Element Burner Power | 1200W |
| Right Front Element Burner Size | 6in. |
| Description | |
| Range Type | Freestanding |
| Size In | 30 |
| Energy | |
| Annual Energy Usage Kwh | 505 |
| Exterior | |
| Door Removable | Yes |
| Drawer Type | Storage Drawer |
| Handle Color | White |
| Handle Material | Plastic |
| Handle Type | Reach-Through Handle |
| Features | |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| LP Convertible | No |
| Natural Gas Convertible | No |
| Configuration | |
| Range Configuration | Freestanding |
| Oven Configuration | Single Oven |
| Controls | |
| Knob Color | Black Stainless |
| Knob Type | Plastic |
| Specifications | |
| Country Of Origin | USA |
| Optional Accessories | W10355051B |
| Extended Service Plan Parent | EW04IW4Y, EW04IW2Y, EW04IW1Y |
| Dishwasher Safe | No |
| Electrical | |
| Amps | 40 |
| Volts | 120 |
| Power Cord Included | Yes |
| Certifications | |
| Energy Rating Kwh Year | 505 |
| CUL | Yes |
| UL | Yes |
| Configuration and Overview | |
| Fuel Type | Electric |
| Flooring Priority | |
| Flooring Priority | 11 |
Schedule your free local delivery available at checkout for up to 75 kms and delivery available for an additional feel for up to 100 kms.
Delivery includes appliance installation if enough space allows it.
30 days to return or exchange any new home appliances. Contact our store for more information: 403-362-5433
Manufacturer parts & labor: year(s)
